Feature
-
AI-Powered Object Detection
This system integrates AI object recognition capabilities to automatically detect pedestrians and various types of vehicles, providing timely safety alerts to prevent accidents and significantly enhance driving safety.
-
High-definition Live Video Display
High-definition live video display with 1080P video recording, delivering clear, smooth, and detailed images for enhanced visibility, reliable monitoring, and safer driving in diverse conditions.
-

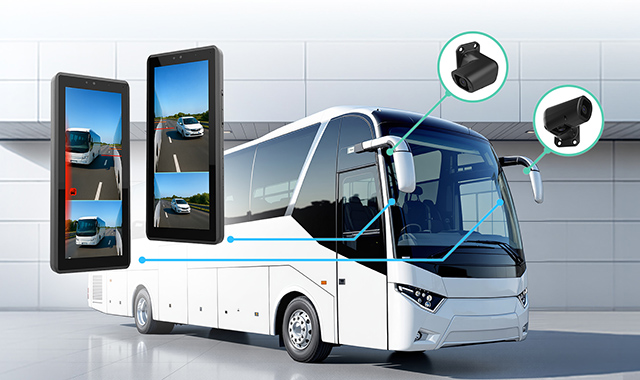

Unique & Waterproof Camera Design
With waterproof and rain & sun shield camera design, the system delivers clear, uninterrupted visuals even in heavy rain. Its adaptive imaging ensures reliable performance and enhanced safety across all weather conditions.
Specifications
- CPU
- Kneron KLM730
Cortex®-A55 quad core, up to 1.1GHz
NPU: 3.6 TOPS
- DRAM
- LPDDR4 2GB
- Memory
- 256MB
- RTC IC
- Yes
- LCD Display
- 12.3 inch LVDS, 1920 x 720, 1000 cd/m2
- Video format
- 1080P
- Sensor
- x 1
- IR Receiver
- x 1
- I/O Interface
- USB3.0 x 1 (Type-A), micro SD slot x 1, Ethernet x 1
- Functions in IO Cable
- Camera input x 2
Specific connector for G-mouse (optional)
Digital input x 3 (headlight/turn signal/reversing)
- Camera
- Camera (Class II/IV): 1920(H) x 1080(V), 30 fps
Camera Image Sensor: 1/2.8" IMX307 2.0MP CMOS
Camera FOV: Follow UN R46 Class II & Class IV FOV
Camera In (TVI): x 2
Camera Waterproof: IP67
Camera Environment: Operating temperature: -30℃~+85℃
- Power
- 9~32V
- Button
- X 5
- Audio
- Microphone in x 1
1W Speaker
- Environment
- Operating Temperature: -30℃~+70℃
Storage Temperature: -40℃~+85℃
- LED Indicator
- Power LED x 1
- Screen Auto Dimming
- Yes
- AI Function
- Object detection
