MS668

MS668

MS668

MS668

Feature

  • Connected Car Solution

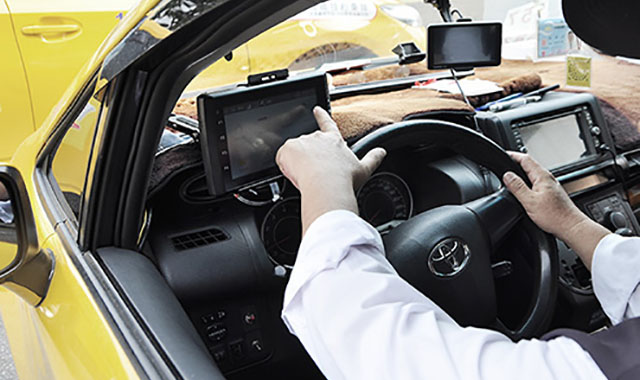

    It's a powerful connected car solution designed for taxi, rental car, school bus, touring bus. It's a tablet with a cradle, which can be fixed on the dash board with a RAM mount.

  • Dead Reckoning (DR) Solution

    It enables to keep high accuracy positioning while loses the GPS/GNSS signals from time to time.

  • Multiple Connectivity Options

    With LTE/3G/Wi-Fi/BT/GPS/GNSS connectivity options, it is ideally suited to deliver and support value-added functions like fleet management, dispatch, logistics, etc.

Specifications

  • OS
  • Android
  • CPU
  • ARM Cortex A9 1GHz
  • Memory
  • 2G DDR3
  • Storage
  • 32G eMMC
  • Display
  • 7inch LCD, capacitive touch
  • RF
  • 3G/LET/GNSS/Wi-Fi/Bluetooth/NFC
  • I/O Interface
  • SD card x 1
    USB x 2
    RS-232 x 1
    Mini SIM card x 1
    Stereo headphone jack x 1
    Video in x 1
    CAN x 1 (optional)
  • Power
  • 9~32V
  • Speaker
  • 1W x 2 speaker, volume adjusted by electric volume
  • Environment
  • Operating temp -20℃ to 70℃
    Storage temp -30℃ to 85℃
  • IP level
  • IP54
