Feature

  • Dead Reckoning (DR) Solution

    It enables to keep high accuracy positioning while loses the GPS/GNSS signals from time to time.

  • Multiple Connectivity Options

    With LTE/3G/Wi-Fi/BT/GPS/GNSS connectivity options, it is ideally suited to deliver and support value-added functions like fleet management, dispatch, logistics, etc.

  • All-In-One Design

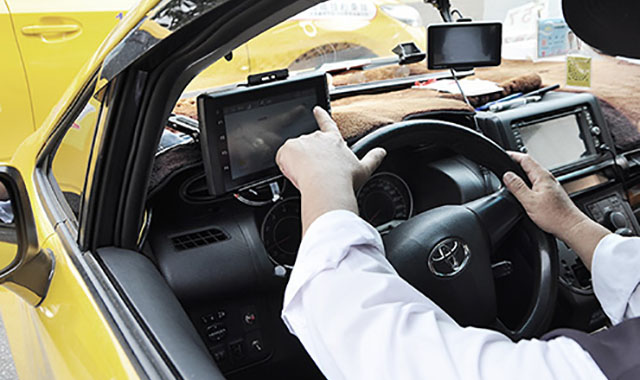

    It's a powerful connected car solution designed for taxi dispatch, rental car, school bus, touring bus. The up to date all-in-one design makes installation effortless without sacrificing powerful product functionalities. The tablet can either be placed in the 2DIN slot or be fixed mounted above the dashboard at your choice.

Specifications

  • OS
  • Android
  • CPU
  • ARM Cortex A9 1GHz
  • Memory
  • 2G DDR3
  • Storage
  • 32G eMMC
  • Display
  • 7inch LCD, capacitive touch
  • RF
  • 3G/LTE/GNSS/Wi-Fi/Bluetooth/NFC
  • I/O Interface
  • SD card x 1
    USB x 2
    RS-232 x 1
    Mini SIM card x 1
    Stereo headphone jack x 1
    Video in x 1
    CAN x 1 (optional)
  • Power
  • 9~32V
  • Speaker
  • Speaker 1W x 2
  • Environment
  • Operating temp -20℃ to 60℃
    Storage temp -40℃ to 85℃
  • IP level
  • IP54
